Part 5: Productize

Goal: Build a dashboard to monitor your inspection system.

Skills: Creating Teleop workspaces, configuring dashboard widgets, writing MQL aggregation pipelines.

Time: ~10 min

What You’ll Build

You’ve built a working inspection system—but monitoring it requires navigating through the Viam app’s configuration and data tabs. In this section, you’ll create a dedicated dashboard that shows everything at a glance: live camera feeds and defect trends over time.

Viam’s Teleop interface lets you create custom monitoring dashboards. You’ll add widgets for camera streams and time series graphs that use MQL aggregation pipelines to analyze your detection data.

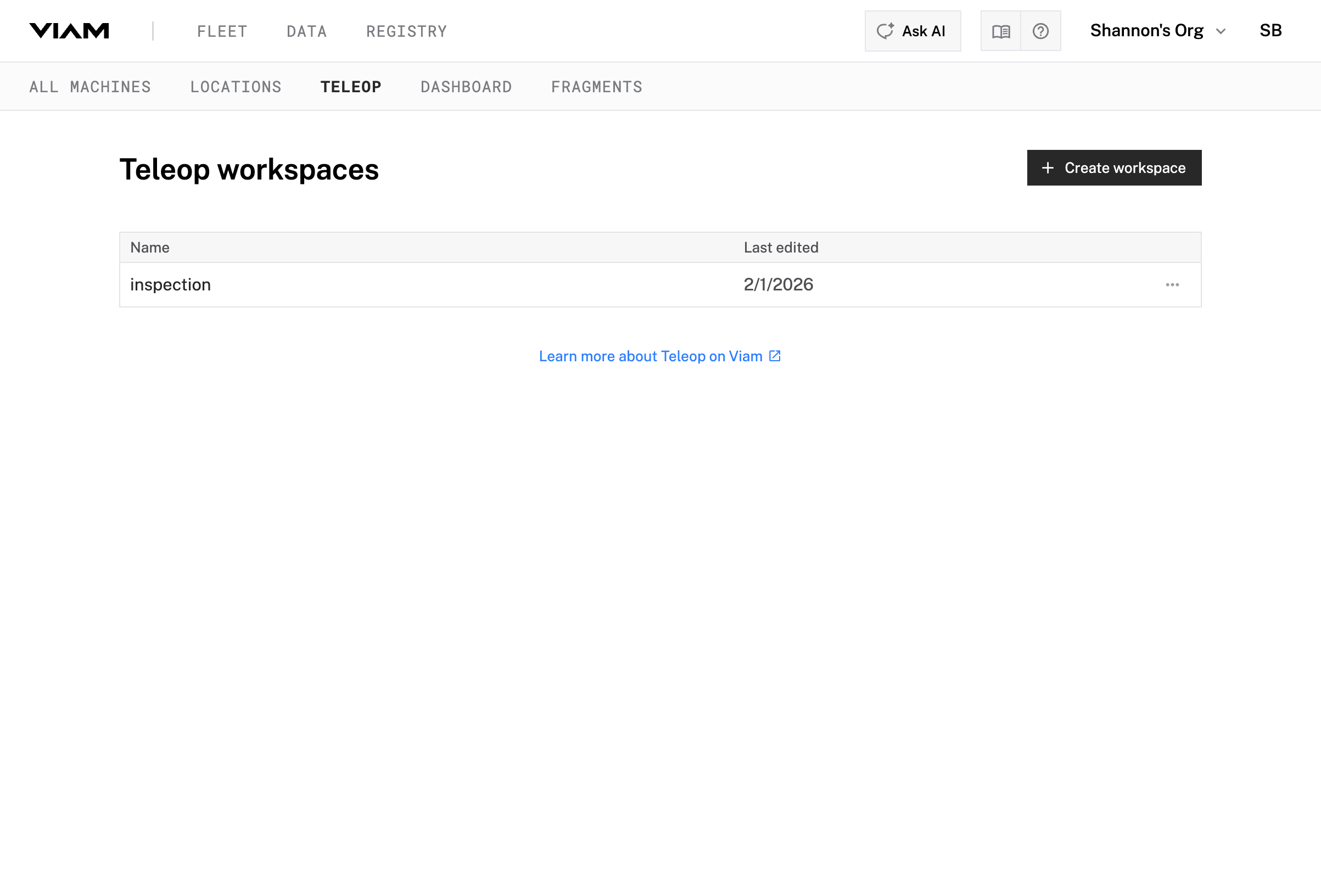

5.1 Create a Workspace

A workspace is a custom dashboard view for your machines.

1. In the Viam app, go to Fleet → Teleop
2. Click + Create workspace
3. Replace the placeholder name with inspection
4. In Select location, choose Home (or your location name)
5. In Select machine, choose inspection-station-1

You now have an empty workspace ready for widgets.

5.2 Add a camera stream widget

Add a live video feed from your inspection camera.

1. Click + Add widget
2. Select Camera stream
3. Click the pencil icon to configure
4. Set Camera name to inspection-cam
5. Set Refresh type to Live
6. Click Save

You should see the live feed from your inspection camera with cans passing on the conveyor belt.

5.3 Add a Defects Per Minute Widget

Now you’ll create a time series graph showing how many defective cans are detected per minute. This requires a custom MQL aggregation pipeline to filter for failures and count them in time buckets.

Recall the data structure from Part 4—each detection looks like:

{
  "component_name": "inspector-service",
  "time_received": "2026-02-02T02:23:27.326Z",
  "data": {
    "docommand_output": {
      "label": "FAIL",
      "confidence": 0.965815
    }
  }
}

You’ll write MQL stages that filter for FAIL labels and count them per minute.

Create the widget:

1. Click + Add widget
2. Select Time series
3. Click the pencil icon to configure
4. Set Title to Defective cans per minute
5. Set Time range (min) to 60
6. Set Refetch rate (sec) to 60
7. Leave Y axis lower bound and Y axis upper bound as auto

Configure the line:

8. Set Resource name to inspector-service
9. Set Capture method to DoCommand
10. Set Title to Defects
11. For Window method, select Custom query

Add the MQL stages:

The custom query method lets you write MongoDB aggregation pipeline stages. You need three stages: match, group, and project.

12. In Custom MQL Stages, add a $match stage to filter for failures only:

    {
      "$match": {
        "data.docommand_output.label": "FAIL"
      }
    }


13. Click + Add stage and add a $group stage to count failures per 60-second bucket:

    {
      "$group": {
        "_id": {
          "$dateTrunc": {
            "date": "$time_received",
            "unit": "second",
            "binSize": 60
          }
        },
        "value": {
          "$sum": 1
        }
      }
    }


14. Click + Add stage and add a $project stage to format the output:

    {
      "$project": {
        "time": "$_id",
        "value": true
      }
    }


15. Click Save

The graph now shows the count of defective cans detected in each minute.

5.4 Add a Confidence Trend Widget

Add another time series showing the average confidence of failure detections over time. This helps you monitor model performance—if confidence drops, you may need to retrain.

1. Click + Add widget
2. Select Time series
3. Click the pencil icon to configure
4. Set Title to Confidence
5. Set Time range (min) to 60
6. Set Refetch rate (sec) to 60
7. Set Y axis lower bound to 0
8. Set Y axis upper bound to 1

Configure the line:

9. Set Resource name to inspector-service
10. Set Capture method to DoCommand
11. Set Title to FAIL confidence
12. For Window method, select Custom query

Add the MQL stages:

13. Add a $match stage:

    {
      "$match": {
        "data.docommand_output.label": "FAIL"
      }
    }


14. Click + Add stage and add a $group stage that averages confidence:

    {
      "$group": {
        "_id": {
          "$dateTrunc": {
            "date": "$time_received",
            "unit": "second",
            "binSize": 60
          }
        },
        "value": {
          "$avg": {
            "$convert": {
              "input": "$data.docommand_output.confidence",
              "to": "double",
              "onError": "$data.docommand_output.confidence"
            }
          }
        }
      }
    }


15. Click + Add stage and add a $project stage:

    {
      "$project": {
        "time": "$_id",
        "value": true
      }
    }


16. Click Save

The graph shows average confidence for failure detections over time.

5.5 Arrange Your Dashboard

Drag widgets to create a useful layout:

1. Click and drag the grid icon in the top-left corner of each widget
2. Position the camera stream on the right for real-time monitoring
3. Stack the time series graphs on the left to compare defect counts and confidence trends

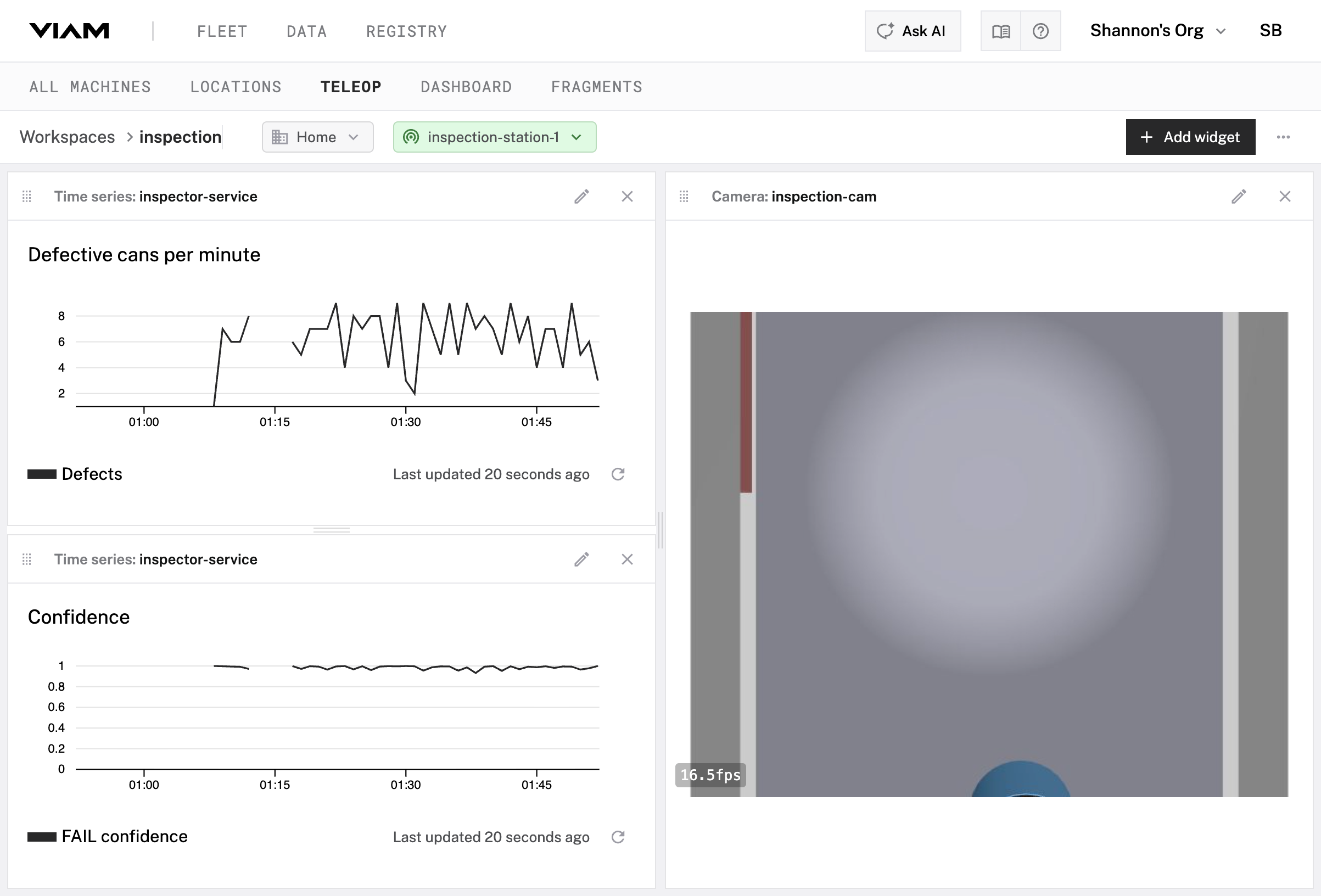

Your dashboard now provides a complete view of your inspection system:

• Live video showing the inspection in progress
• Defects per minute tracking production quality
• Confidence trend monitoring model performance

5.6 Summary

You’ve created a monitoring dashboard using MQL aggregation pipelines:

1. Created a workspace for your inspection station
2. Added a camera stream for live video monitoring
3. Built a defects graph using $match → $group (count) → $project
4. Built a confidence graph using $match → $group (average) → $project

The same MQL pipeline pattern—filter, aggregate, project—can be adapted for other metrics: pass rate, throughput, detection latency, or any data your system captures.

Congratulations

You’ve completed the tutorial. Here’s what you built:

1. Vision Pipeline—Camera, ML model, and vision service detecting defects
2. Data Capture—Automatic recording and cloud sync of images and detections
3. Control Logic—Custom inspector module exposing detection through DoCommand
4. Module Deployment—Packaged and deployed to run autonomously
5. Productize—Monitoring dashboard with real-time analytics

You’ve gone from an empty machine to a production-ready inspection system with monitoring—patterns that apply to any Viam application.
